Joblin - Tiny House Trailer

The Joblin Tiny House trailer …

Features

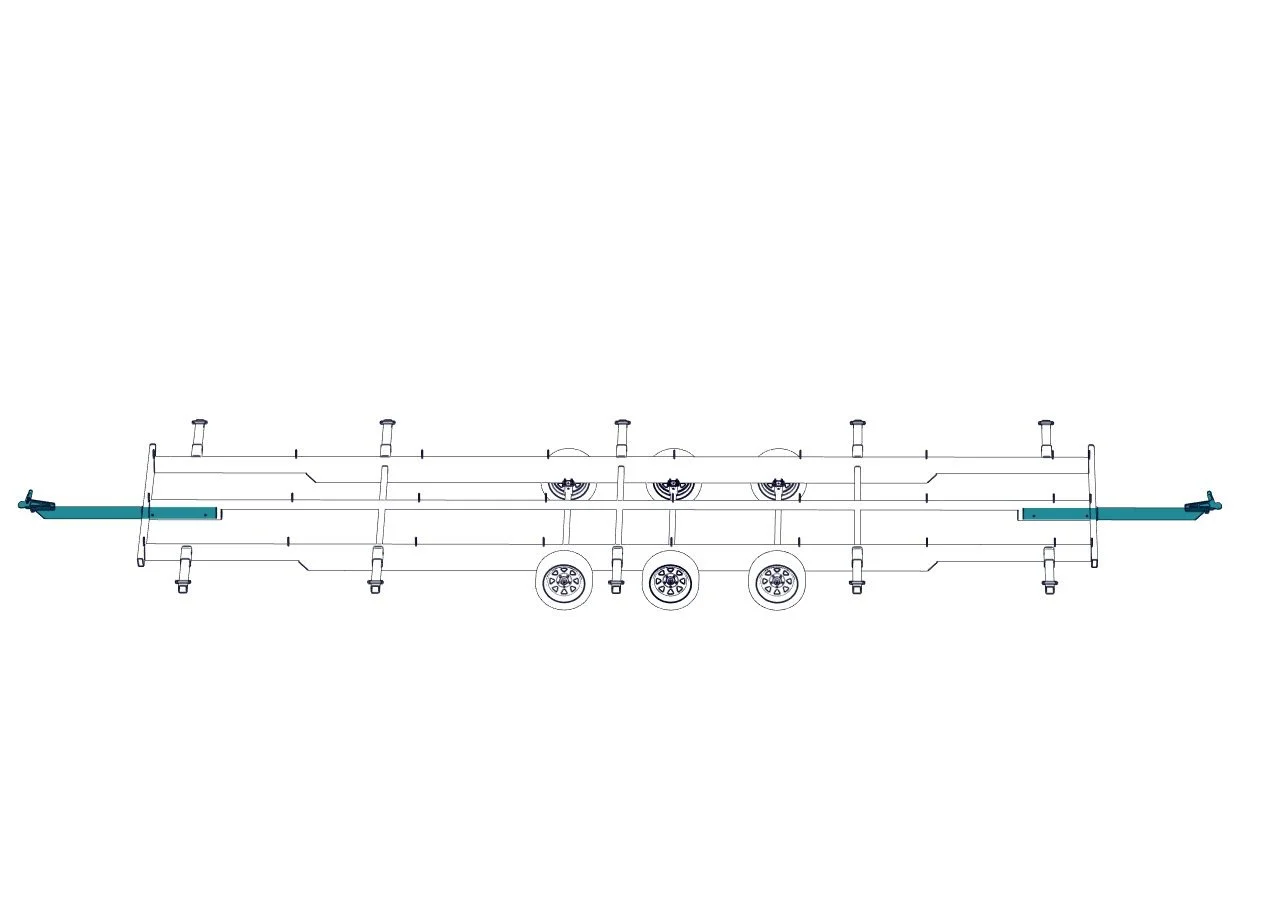

Drawbar Mounts Both Ends

The simple and lightweight drawbar can attach at both ends, providing options for maneuvering into tricky spots. It's also easy to store under the home or in another location, or even use with another trailer.

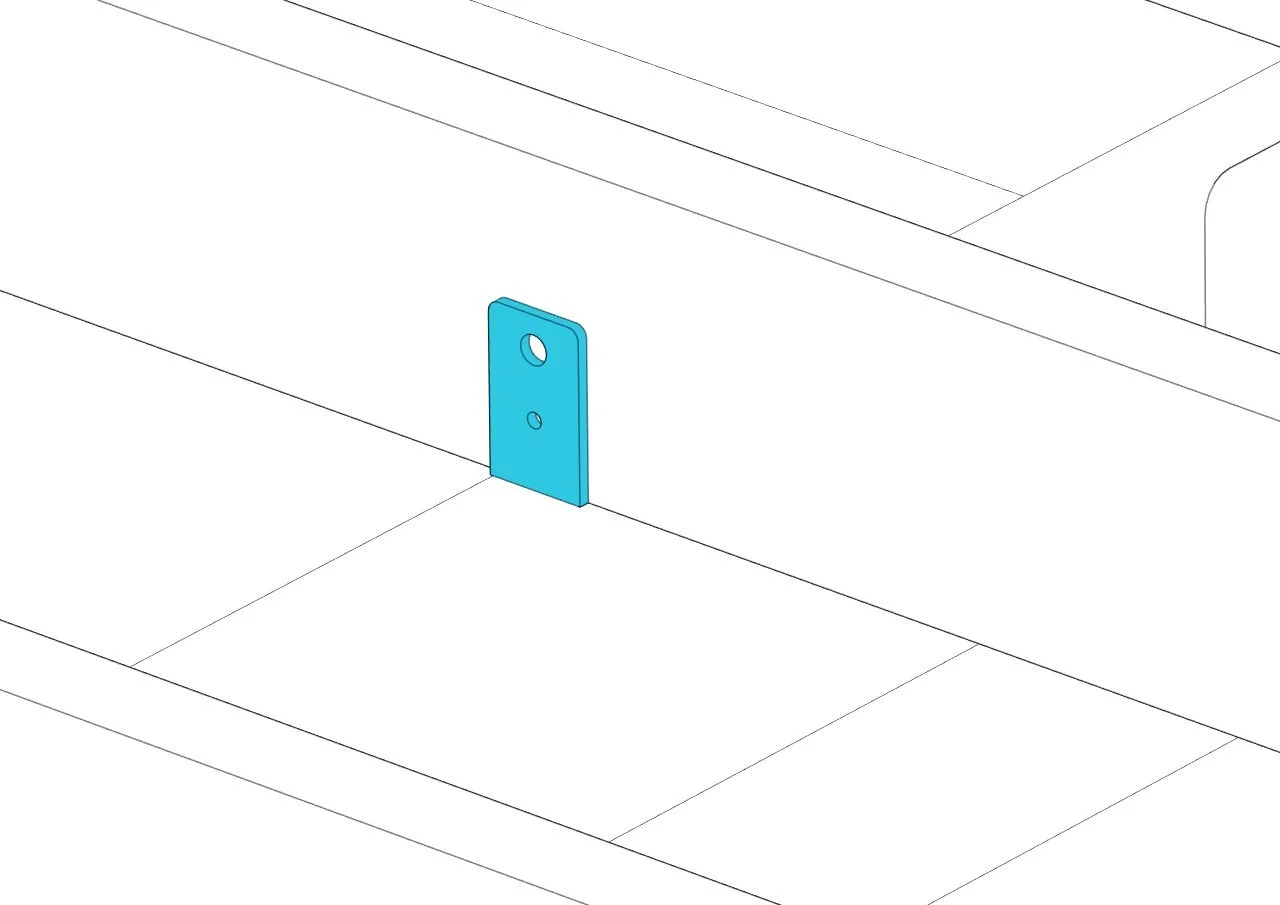

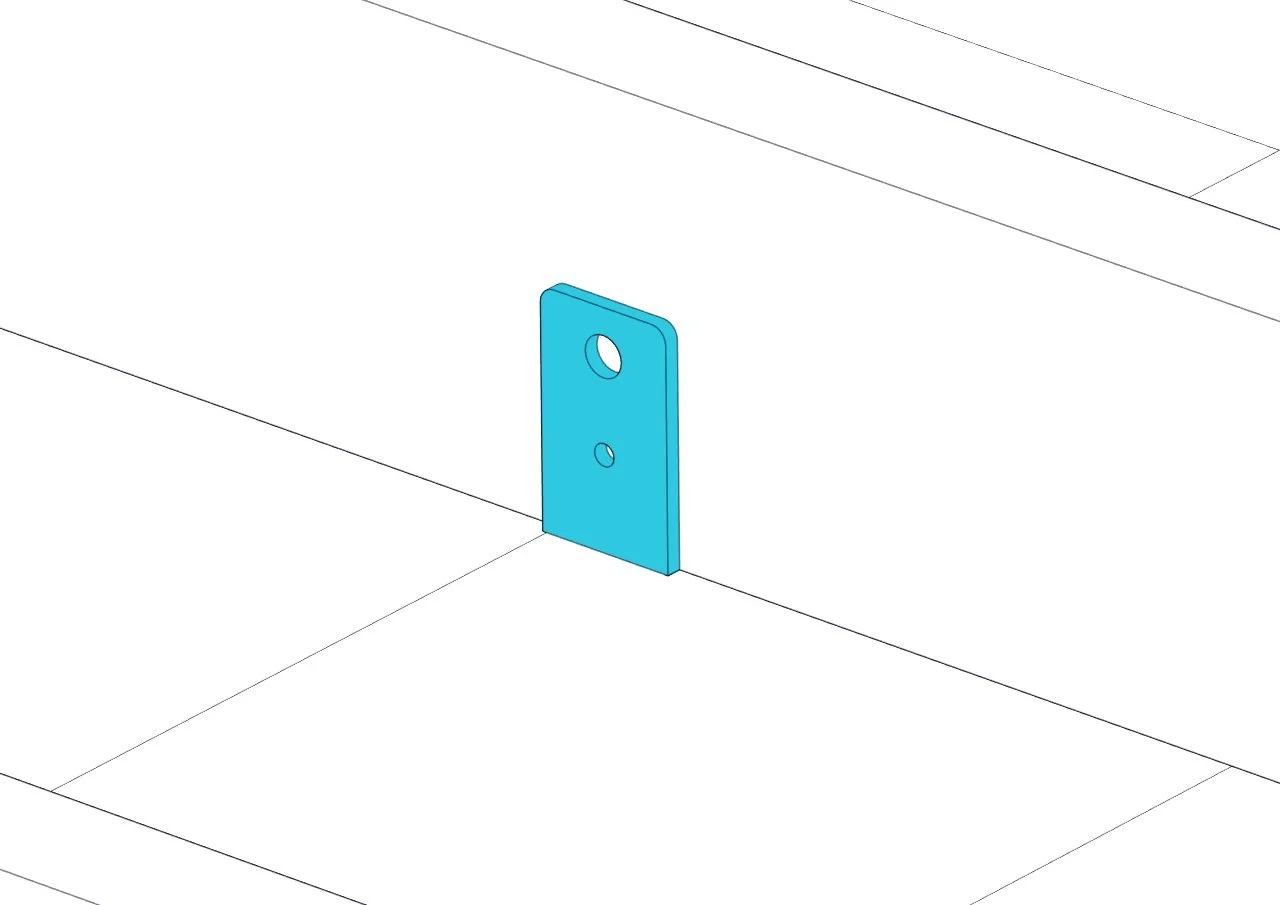

Floor Fixing

Welded tabs are placed on every third joist, allowing the chassis to bolt directly to the frame. It’s a simple, cost‑effective, and strong connection method — and it also makes it easy to unbolt the home from the trailer in the future if you ever need to move or repurpose it.

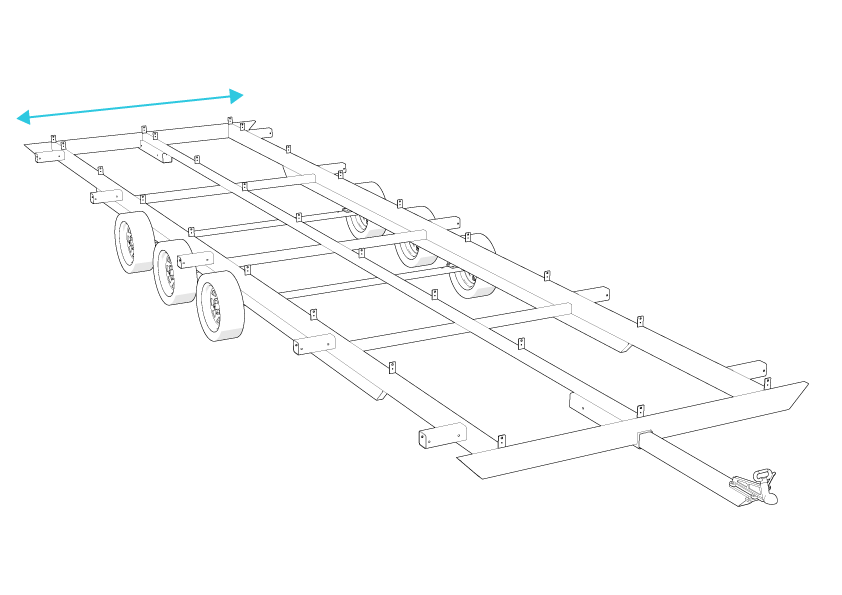

Arms

Arms can be adjusted to suit any with up to 3.6m wide.

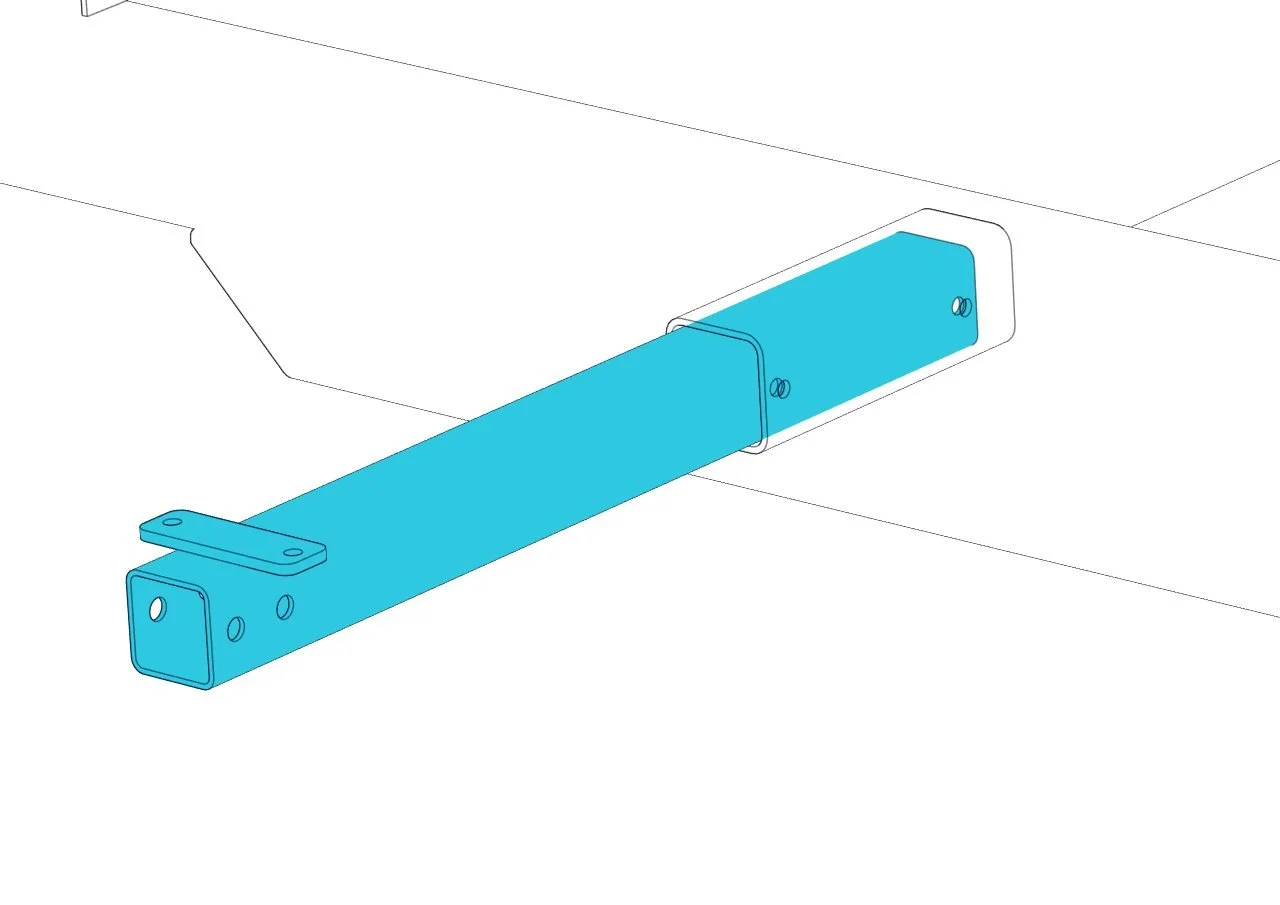

Lifting & Tie Down

The extendable arms serve as lifting points when paired with optional lifting jacks and also incorporate wind and flood tie-down points.

Road Legal

Chassis under 2.55m means legal for road travel to building site. Arms are bolted up on site.

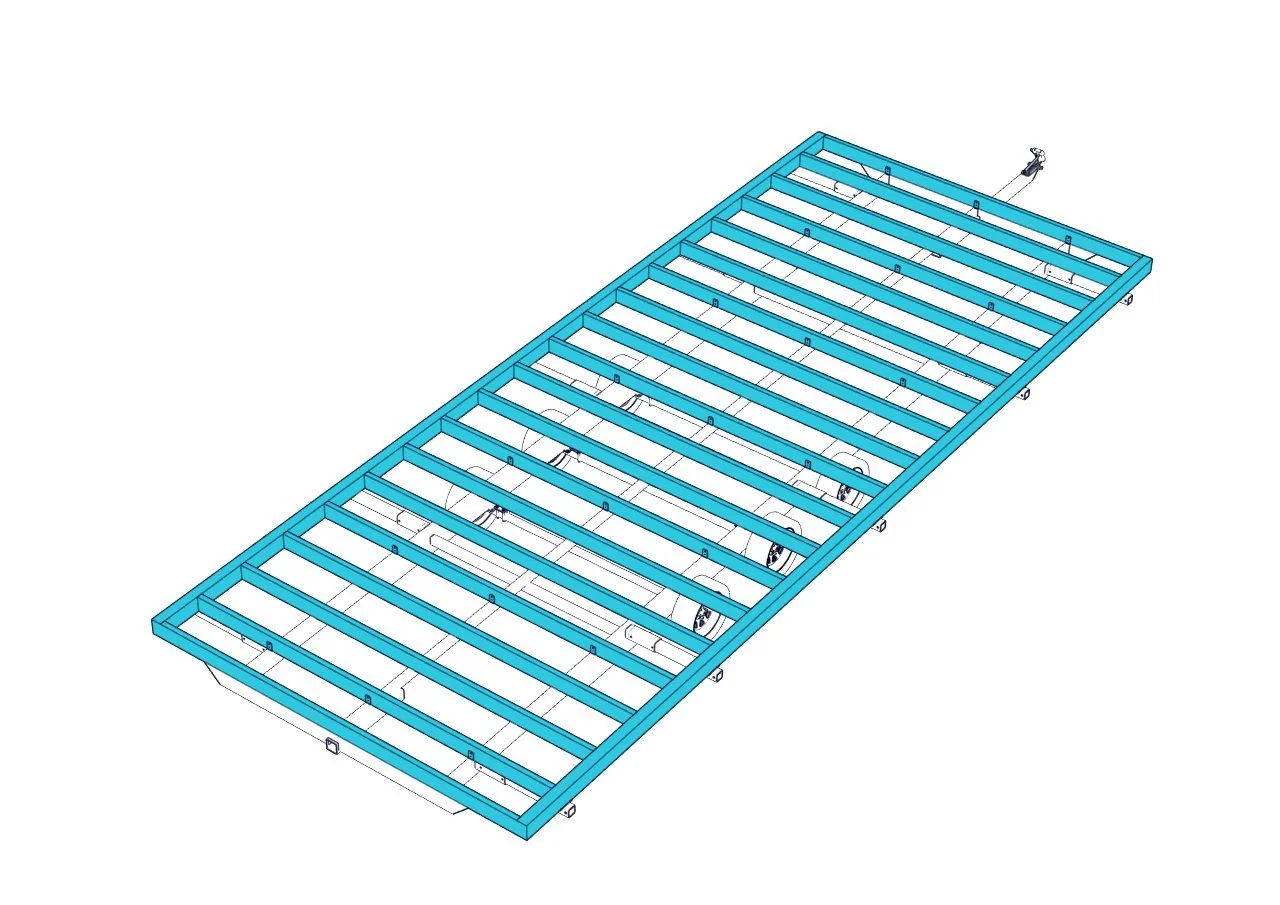

Floor Frame

Building the frame on-site helps save money. We recommend using 140mm LVL or timber for this process. This approach offers better thermal performance and the added benefit of laying a floor on timber rather than steel.

Lengths from 3.6m to 11.4m.
All parts are hot dip galvanised, axles pre galvanised.
Height from ground to top of chassis is 600mm.
Lights, WOF, and rego are optional. You can rent a lightboard, lights, and rego to get to the site and courier them back.
Brakes and controller are optional. Trailers can be towed to site without brakes, pays to check towing weights.
If a braked dolly is selected, it will be wired to a 7-pin plug to activate the brakes using a vehicle's hard-wired brake controller.
A cable hand brake is needed to gain WoF.

Pricing

Use this form to understand pricing and use the ‘order trailer’ button below to purchase. Or feel free to email order. Please contact with any questions via email or phone. Pricing includes GST.
